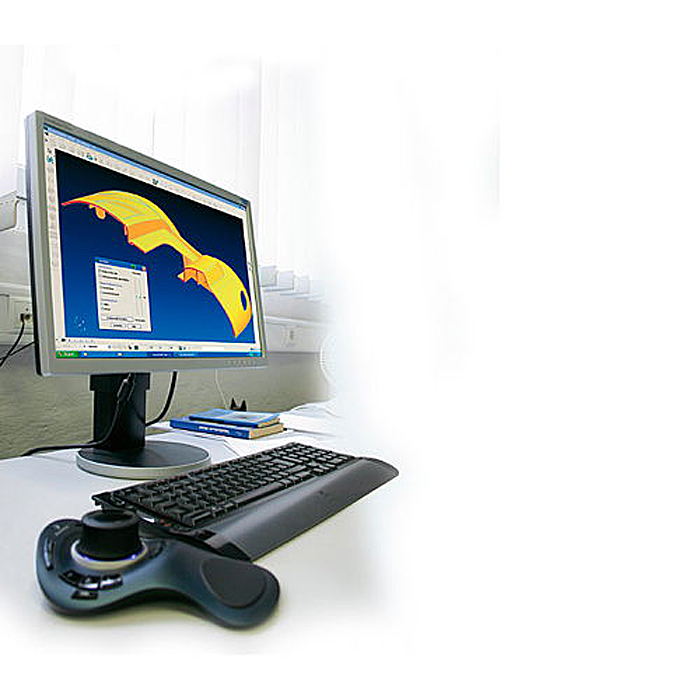

Design of the model device by CAD as per available 3D data.
|

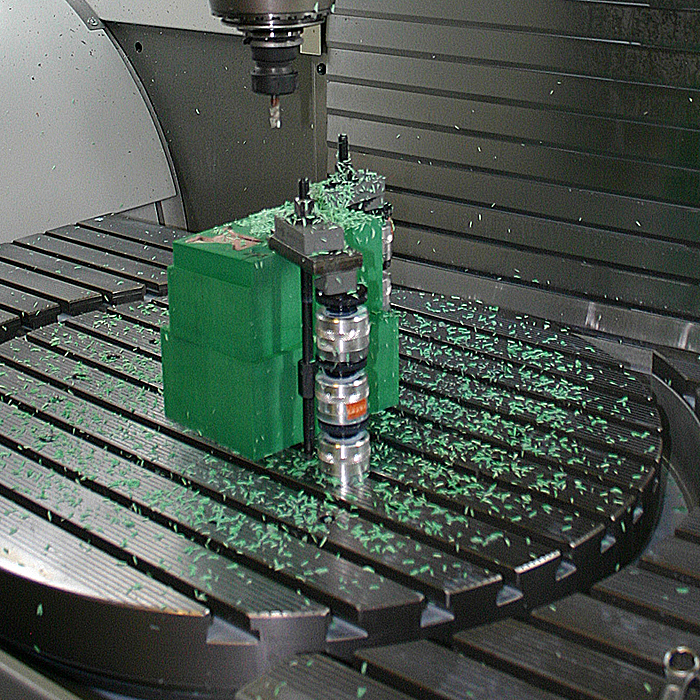

Manufacture of the individual model parts on the 5-axes milling machine.
|

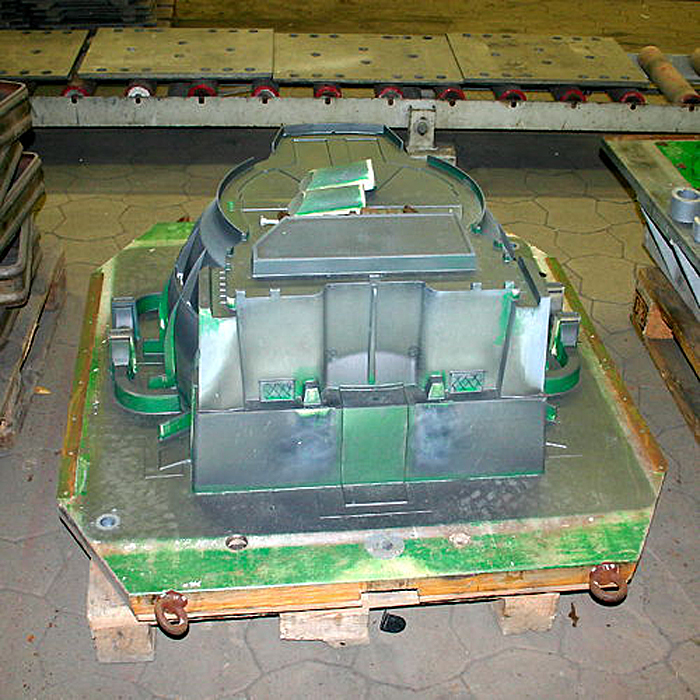

Complete pattern plate halves with casting and feeder technique.
|

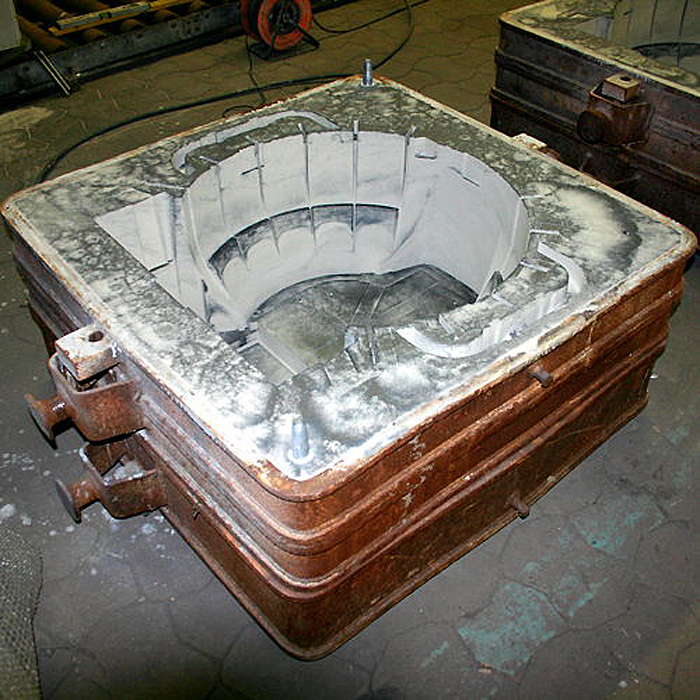

Moulded upper side as dead sand mould.
|

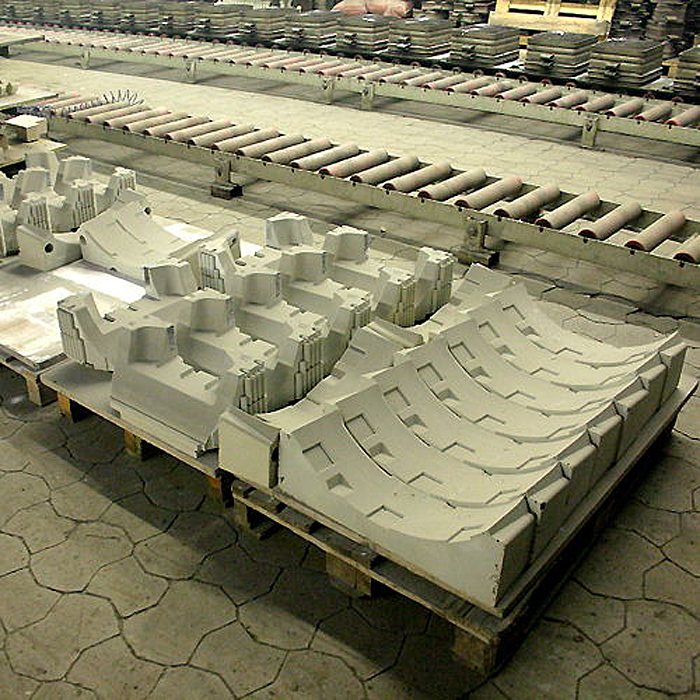

Cores ready for installation to show cavities and undercuts for the use in the sand mould.
|
Preparation of the sand mould for assembly.
|

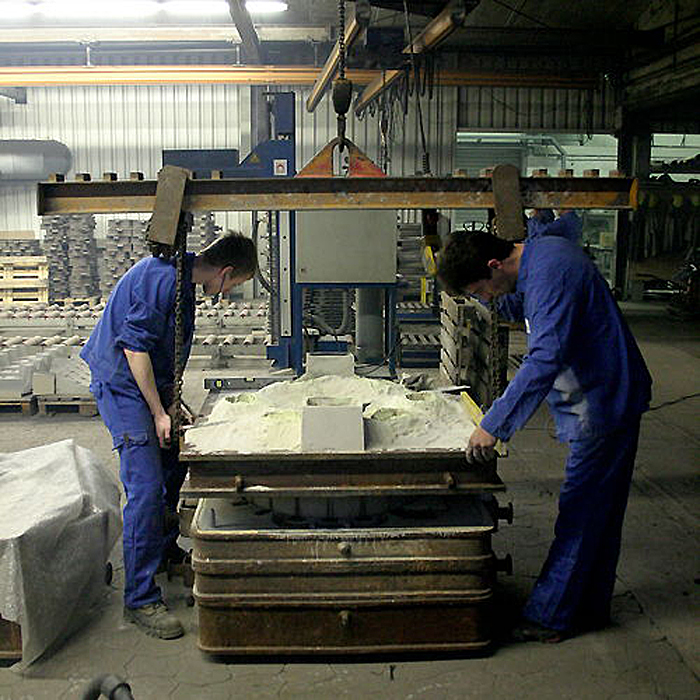

Assembly of the mould parts to a mould ready for casting.
|

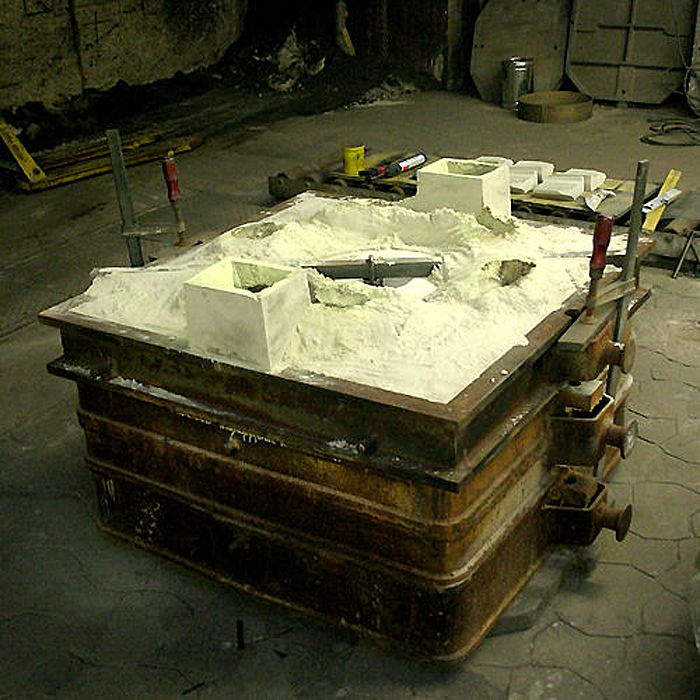

A mould prepared for casting.
|

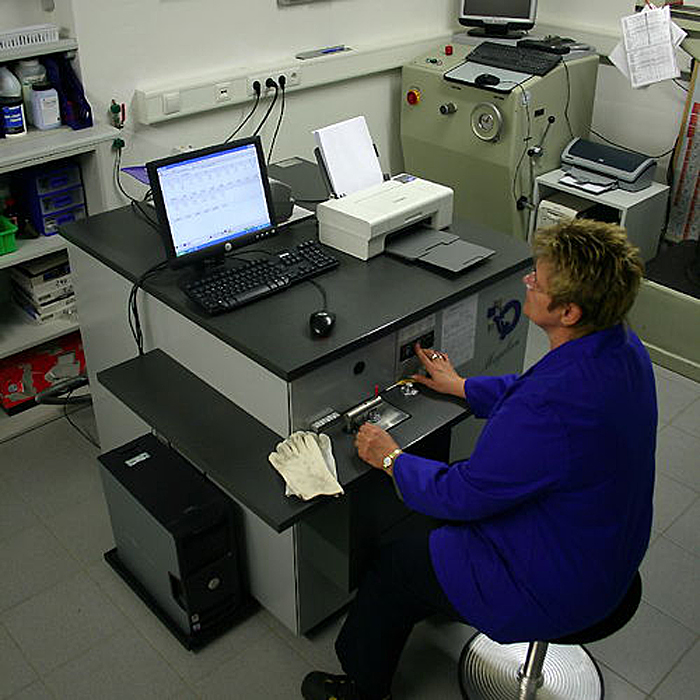

Identification of the alloy components by spectral analysis.
|

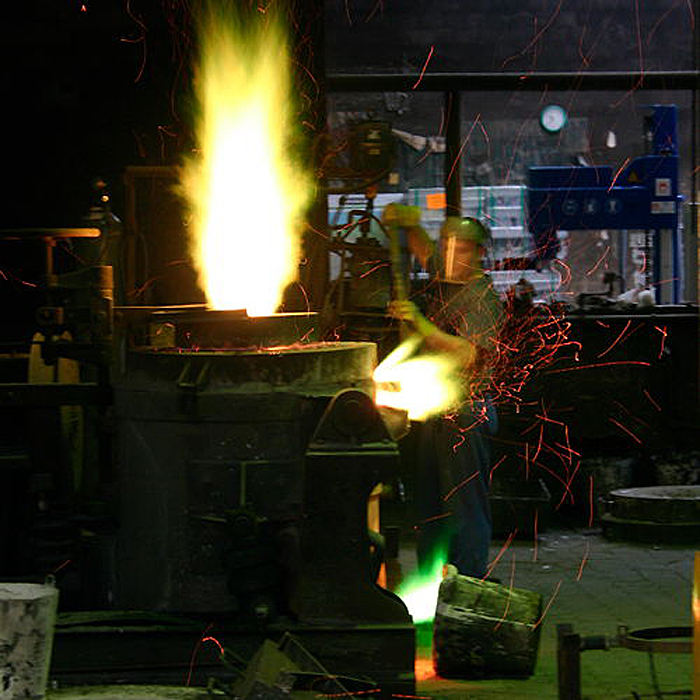

Provision of the magnesium melt to cast the mould.
|

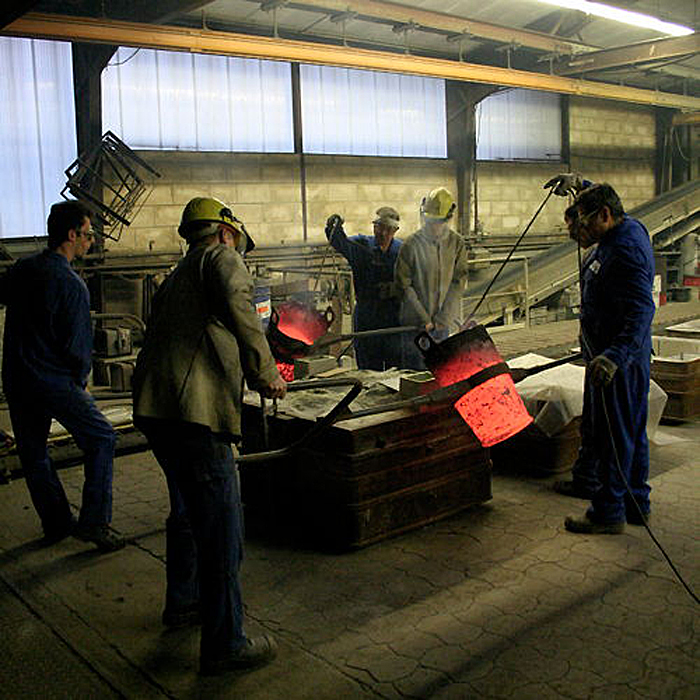

The sand mould is "cast", i.e. filled with the magnesium melt.
|

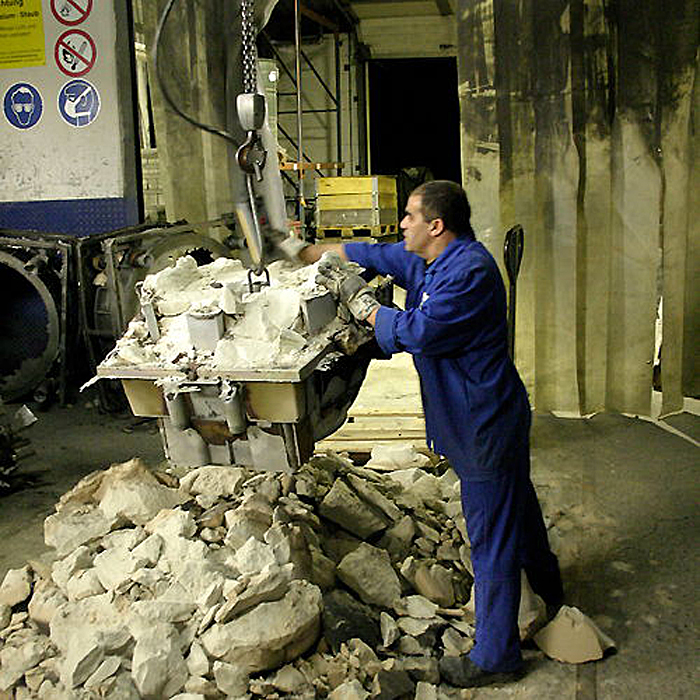

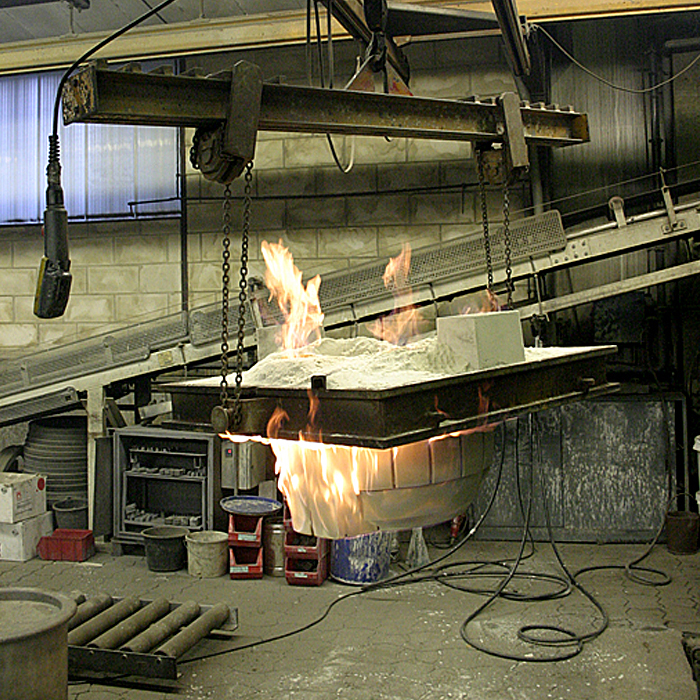

Demoulding of the casting after solidification of the melt.
|

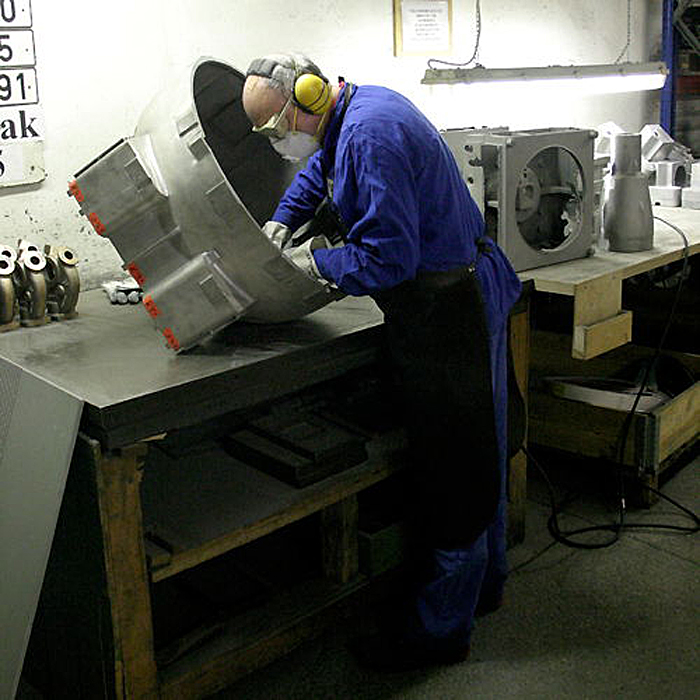

Casting and feeder technique is removed, the casting is fettled.
|

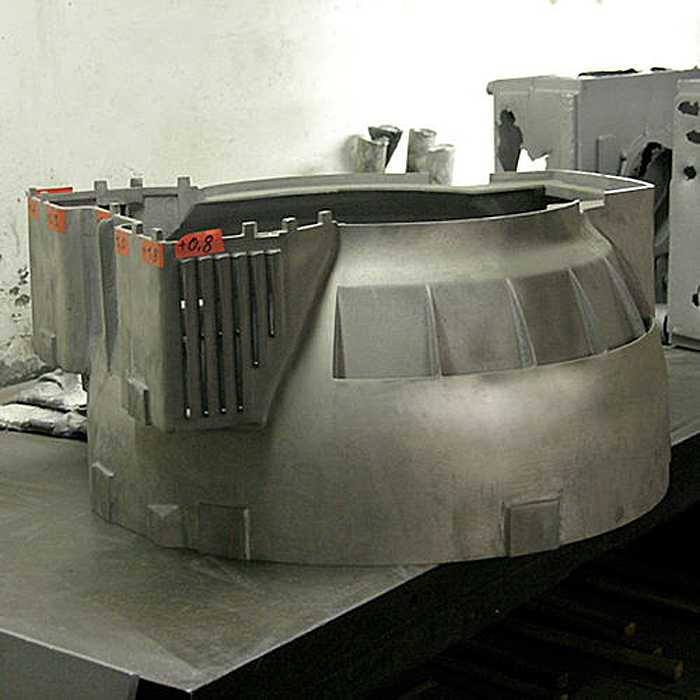

First inspections at the finished blank.
|

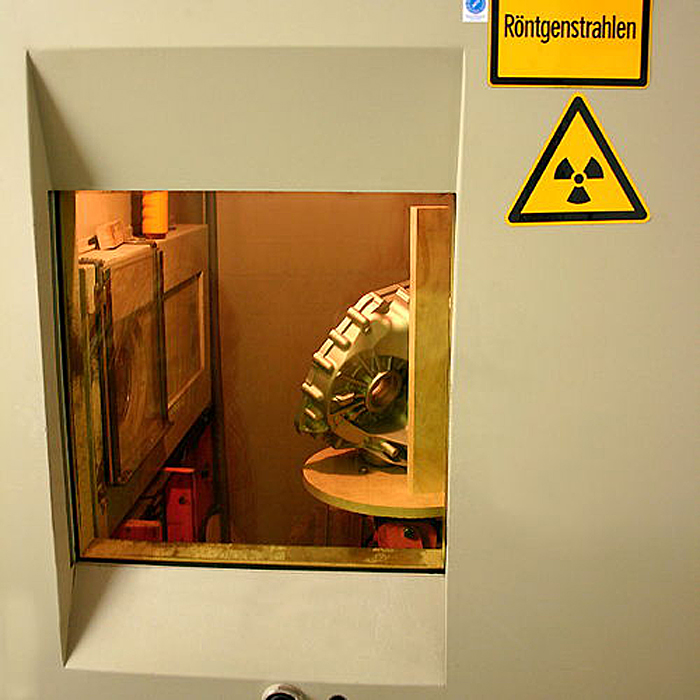

X-ray testing of the casting to check the internal condition of the component.
|
Microscopic testing of the casting material structure.
|

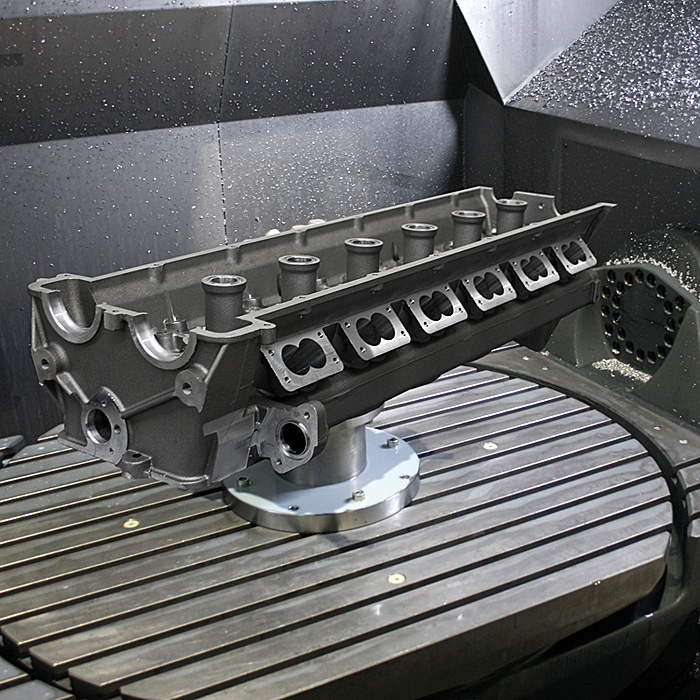

Mechanical treatment of the casting on a 5-axes machining centre.
|

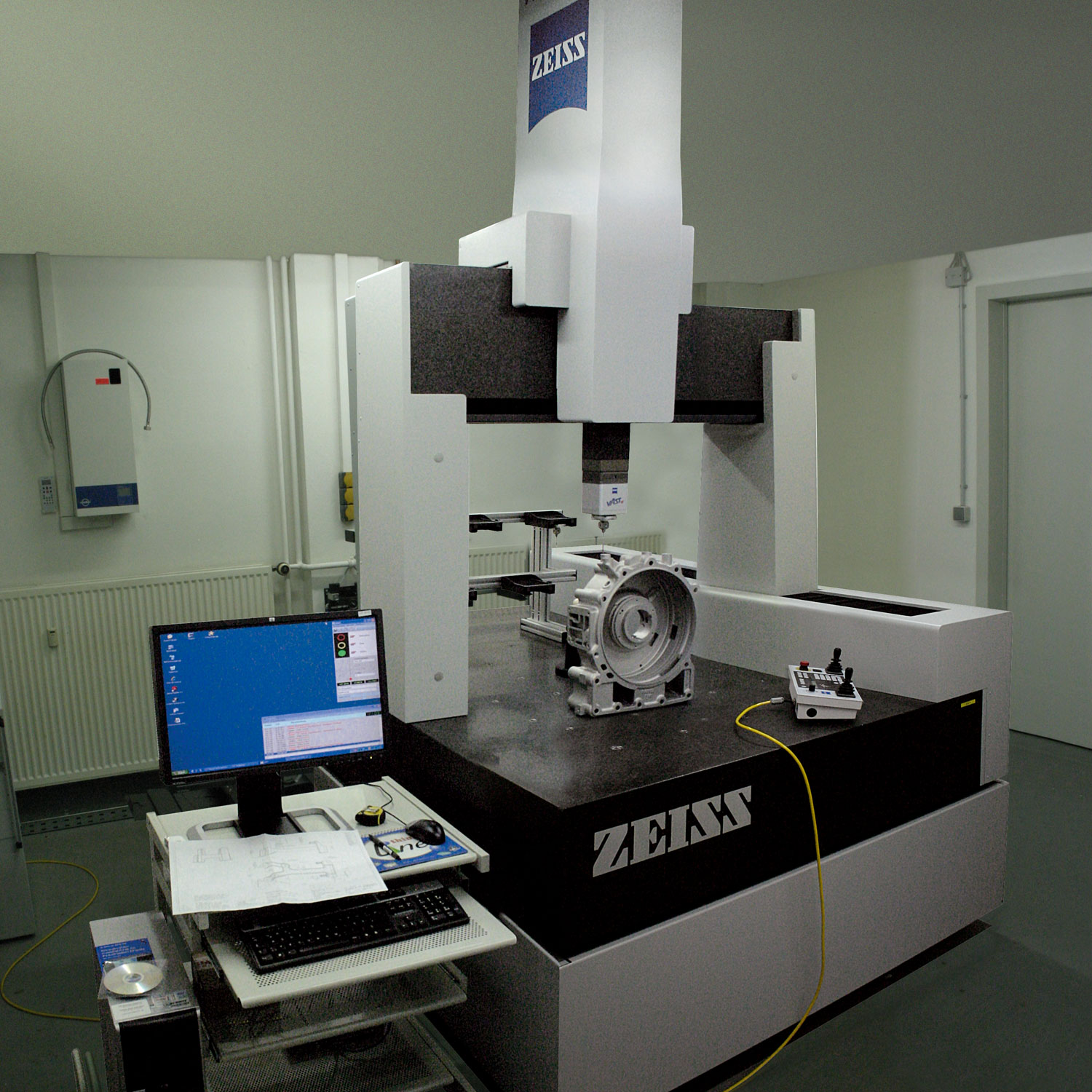

Dimensional testing after machining on a NC measuring machine.
|

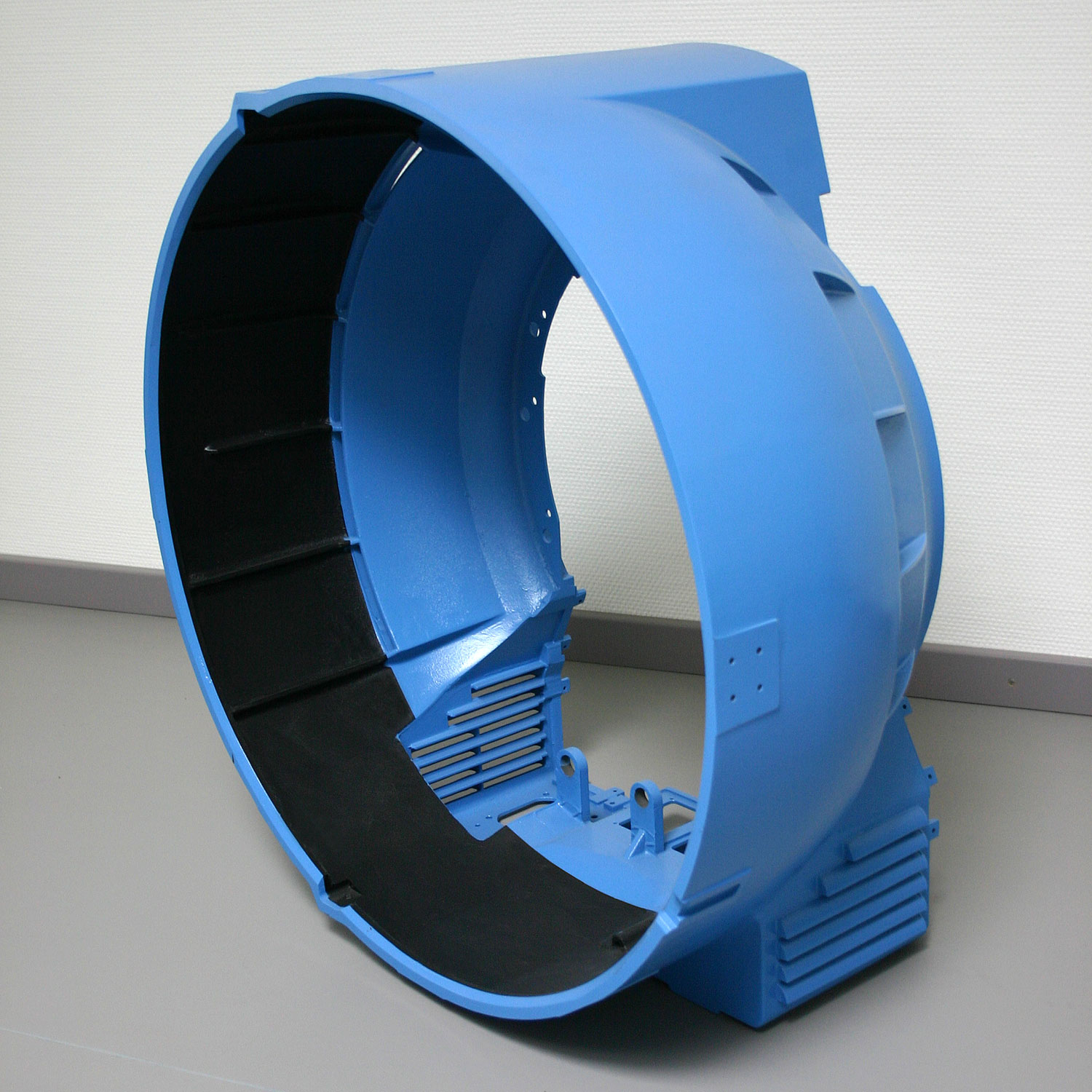

Casing ready for assembly
for a 20,000 watt head lamp made of magnesium casting with heat-resistant coating.
Diameter: approx. 700 mm
Height: approx. 350 mm
Weight: approx. 6.70 kg
Alloy: G-MgAl9Zn1 (magnesium AZ 91hp)
Wall thickness: min. 3mm
|
